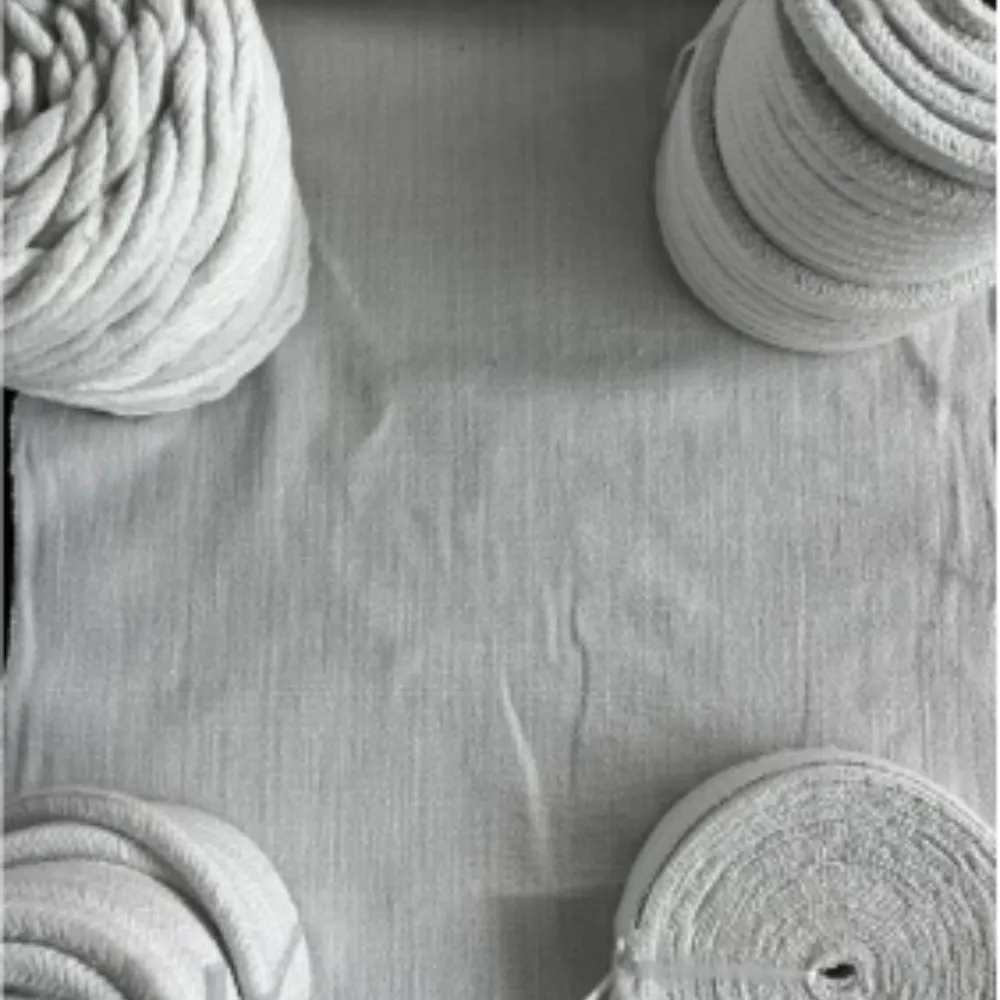

Ceramic Fiber Textiles
Ceramic fiber textiles are high-temperature, flexible materials made from alumina-silicate fibers, often reinforced with fiberglass, stainless steel wire, or other high-strength materials.These textiles are designed for extreme heat insulation, fireproofing, and thermal management in industrial and commercial applications.They come in various forms, including cloth, rope, tape and felt. Ceramic fiber textiles are manufactured from alumina-silica ceramic fiber consisting of 47% Alumina, and 53% Silica. The textiles are free of asbestos and crystalline silica.The material is typically used up to 1260°C. Ceramic fiber textiles are a good substitute for asbestos products in many insulation and sealing applications.
Key Features
Outstanding High-Temperature Resistance
Continuous use at 1000–1200°C, peak temperature up to 1260°C. Ideal for furnaces, kilns, and heat treatment systems.
Excellent Thermal Insulation
Low thermal conductivity and minimal heat loss help improve energy efficiency and reduce surface temperature.Maintaining structural integrity under extreme heat.
Superior Chemical Stability
Resistant to most corrosive environments, including acids and alkalis, performs well under various chemical atmospheres. Ensuring durability in harsh industrial settings.
Flexible and Easy to Fabricate

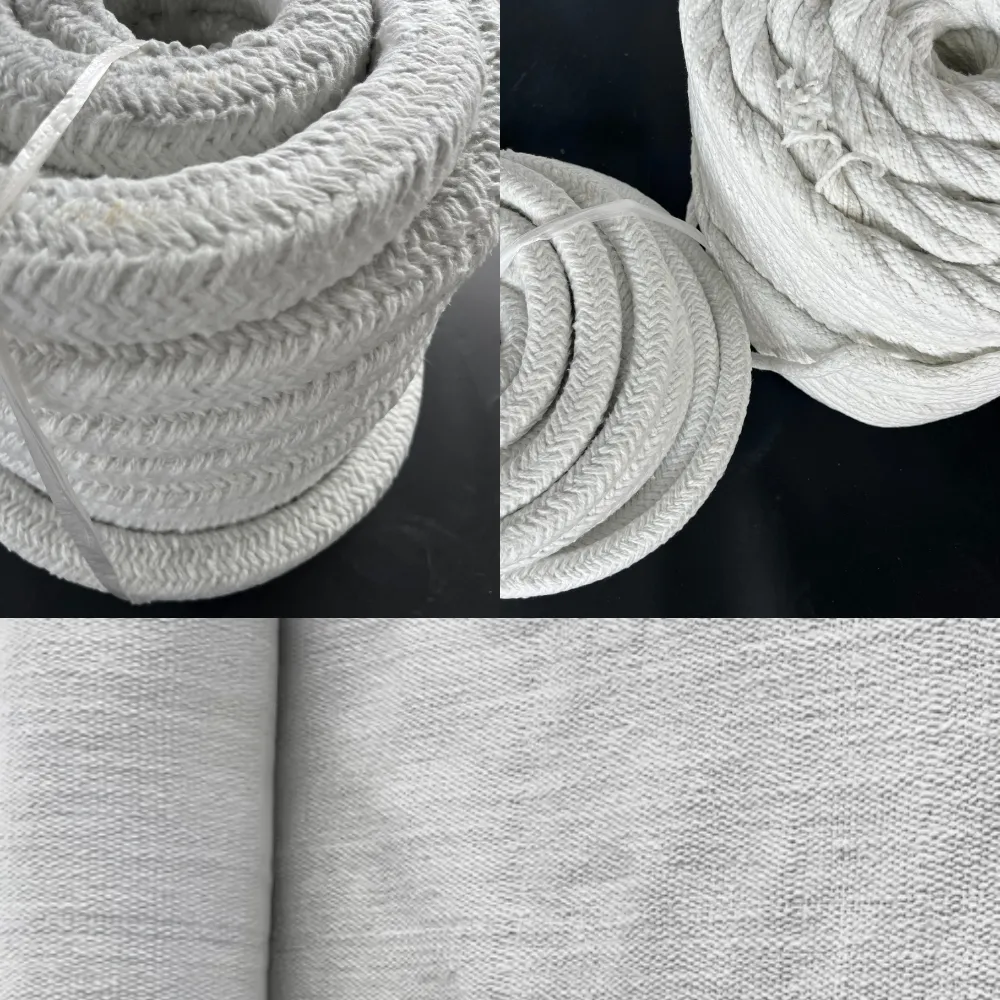

Available in multiple textile forms (cloth, tape, rope, thread), easy to Easy to handle, cut, and shape, allowing for versatile installation in complex or confined spaces and sealing structures.
Good Electrical Insulation
Maintains reliable dielectric strength at elevated temperatures, suitable for electrical and thermal equipment.
Asbestos-Free & Environmentally Safe
Non-toxic, non-irritating, and compliant with modern environmental and occupational safety standards.
Low Thermal Conductivity
Effectively minimizes heat transfer, improving energy efficiency and process temperature control.
Industry
Application
Used for insulation of furnaces, covers, and pipelines in metallurgy, petrochemical, and power industries.
Provides excellent thermal efficiency and reduces heat loss.
Ideal for fire doors, curtains, and partitions.
Offers reliable fire resistance and thermal protection for safety-critical areas.
Made into cloth, tape, or rope for valves, pumps, and heat-treatment equipment.
Ensures long-lasting sealing under extreme conditions.
Applied in exhaust systems and engine heat shields.
Protects components from high heat and supports lightweight design.
Serves as high-temperature insulation for electric heaters and devices.
Prevents heat damage and ensures system reliability.
Specification Sheet
Product Code | MYTX-1260-67 | MYTX-1260-68 | MYTX-1260-68D | MYTX-1260-67S |
Classification Temp. (°C) | 1260 | 1260 | 1260 | 1260 |
Bulk Density (kg/m³) | 500-650 | 500-650 | 500-650 | 500-650 |
Fiber Diameter (µm) | 2-5 | 2-5 | 2-5 | 2-5 |
Thermal Conductivity (580°C, 8 pcf) |
0.130 W/m·K | 0.130 W/m·K | 0.130 W/m·K | 0.130 W/m·K |
Reinforcement | SS 304 Wire / Fiberglass | SS 304 Wire / Fiberglass | SS 304 Wire / Fiberglass | SS 304 Wire / Fiberglass |
LOI (%) | ≤15 | ≤15 | ≤15 | ≤15 |
Product Handling & Storage Guidelines
Avoid Oil and Chemical Contamination
Continuous use at 1000–1200°C, peak temperature up to 1260°C. Ideal for furnaces, kilns, and heat treatment systems.
Proper Storage Conditions
Store in a cool, dry, and well-ventilated area. Protect from moisture, mechanical stress, and direct sunlight to maintain product performance and lifespan.
Handling Recommendations
Avoid excessive bending, compression, or friction during installation. Use appropriate protective gear to prevent fiber irritation and ensure workplace safety.
Custom Ceramic Fiber Textiles Manufacturer
We provide tailored ceramic fiber textile solutions, including cloth, rope, tape, and felt, to meet specific insulation and sealing needs. Customization covers various forms, sizes, reinforcement options, and performance specifications for diverse high-temperature applications.
